Flow Controllers
Push In Type Compress Type
  Push In Type

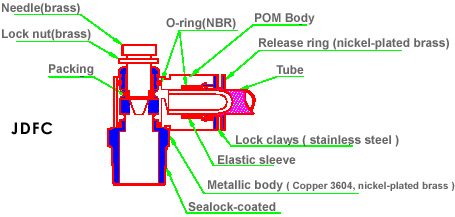

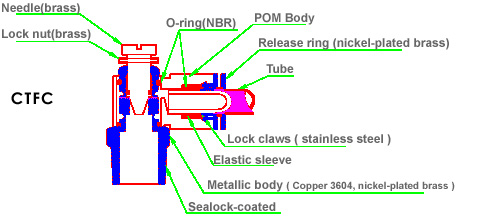

Structure :


Features:
  • Minimized size fits any tube lines in small spaces.
  • Metal release ring removal of the air compressing tube after longer fitting period.
  • Air-block lightness.
  • CTFC Series for low and medium flow control(recommended for higher control quality).
  • JDFC Series for high and medium flow control.
Specifications :
  • Temperature range : 0-60¢XC
  • Pressure range : 0-9kgf/cm2
  • Operating Fluid : Air
How to order
1. Type CT : for medium, low fiows.
              JD : for medium, high flows.
2. SC : Speed Controller      FC : Flow Controller
3. The Shape of speed controller
4. Blank : Push In Type        N : Compress type
5. Tube Dia (D)

  Metric Inch
Code 04 06 08 10 12 04 07 08 09 13
Dia 4 6 8 10 12 3.97 6.35 7.94 9.53 12.7

6. Thread size (R)
  PT NPT PS
Code M3 M5 01 02 03 04 1032 01 02 03 04 01 02 03 04
Dia M3X0.5 M5X0.8 R1/8 R1/4 R3/8 R1/2 10-32UNF R1/8 R1/4 R3/8 R1/2 R1/8 R1/4 R3/8 R1/2

7. Blank : Outlet control      B : Inlet control
8. Thread Type


Blank : PT                        N : NPT                         G : PS

JDFC
JDFCS
JDFCU
JDFCK
CTFC
CTFCS
CTFCU
CTFCK
