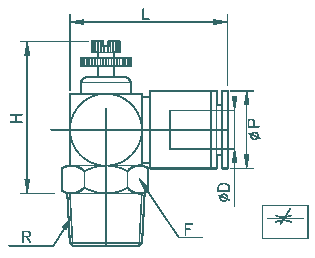

CTFC Elbow
|
 |
 |
ˇiSwivelˇj |
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L |
H |
| CTFC04M5 |
4 |
M5x0.8 |
8 |
10 |
23 |
30 |
| CTFC0401 |
1/8 |
10 |
31 |
| CTFC0402 |
1/4 |
14 |
| CTFC06M5 |
6 |
M5x0.8 |
8 |
12 |
23.5 |
30 |
| CTFC0601 |
1/8 |
12 |
14 |
26.5 |
34 |
| CTFC0602 |
1/4 |
14 |
| CTFC0603 |
3/8 |
17 |
30 |
38 |
| CTFC0604 |
1/2 |
21 |
| CTFC0801 |
8 |
1/8 |
14 |
31 |
38 |
| CTFC0802 |
1/4 |
| CTFC0803 |
3/8 |
17 |
| CTFC0804 |
1/2 |
21 |
| CTFC1001 |
10 |
1/8 |
19 |
19 |
36 |
46 |
| CTFC1002 |
1/4 |
| CTFC1003 |
3/8 |
| CTFC1004 |
1/2 |
21 |
| CTFC1202 |
12 |
1/4 |
19 |
| CTFC1203 |
3/8 |
| CTFC1204 |
1/2 |
21 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L |
H |
| CTFC041032 |
5/32 |
10-32UNF |
8 |
10 |
23 |
30 |
| CTFC0401N |
1/8 |
10 |
31 |
| CTFC0402N |
1/4 |
14 |
| CTFC071032 |
1/4 |
10-32UNF |
8 |
12 |
23.5 |
30 |
| CTFC0701N |
1/8 |
12 |
14 |
26.5 |
34 |
| CTFC0702N |
1/4 |
14 |
| CTFC0703N |
3/8 |
17 |
30 |
38 |
| CTFC0704N |
1/2 |
21 |
| CTFC0801N |
5/16 |
1/8 |
14 |
31 |
| CTFC0802N |
1/4 |
| CTFC0803N |
3/8 |
17 |
| CTFC0804N |
1/2 |
21 |
| CTFC0901N |
3/8 |
1/8 |
19 |
19 |
36 |
46 |
| CTFC0902N |
1/4 |
| CTFC0903N |
3/8 |
21 |
| CTFC0904N |
1/2 |
| CTFC1302N |
1/2 |
1/4 |
19 |
| CTFC1303N |
3/8 |
| CTFC1304N |
1/2 |
21 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L |
H |
| CTFC04M5 |
4 |
M5x0.8 |
8 |
10 |
23 |
31 |
| CTFC0401G |
1/8 |
10 |
32 |
| CTFC0402G |
1/4 |
14 |
| CTFC06M5 |
6 |
M5x0.8 |
8 |
12 |
23.5 |
31 |
| CTFC0601G |
1/8 |
12 |
14 |
26.5 |
35 |
| CTFC0602G |
1/4 |
14 |
| CTFC0603G |
3/8 |
17 |
30 |
39 |
| CTFC0604G |
1/2 |
21 |
| CTFC0801G |
8 |
1/8 |
14 |
31 |
| CTFC0802G |
1/4 |
| CTFC0803G |
3/8 |
17 |
| CTFC0804G |
1/2 |
21 |
| CTFC1001G |
10 |
1/8 |
19 |
19 |
36 |
47 |
| CTFC1002G |
1/4 |
| CTFC1003G |
3/8 |
| CTFC1004G |
1/2 |
21 |
| CTFC1202G |
12 |
1/4 |
19 |
| CTFC1203G |
3/8 |
| CTFC1204G |
1/2 |
21 |
|
