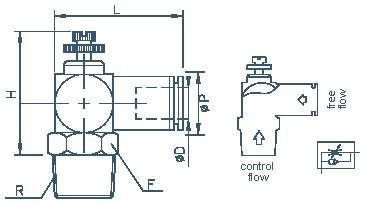

JDSCC Speed
Controller |
 |
 |
| ˇiSwivelˇj |
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L |
H |
| JDSC04M5C |
4 |
M5x0.8 |
8 |
8 |
23 |
30 |
| JDSC0401C |
1/8 |
10 |
31 |
| JDSC0402C |
1/4 |
14 |
| JDSC06M5C |
6 |
M5x0.8 |
8 |
10 |
23.5 |
30 |
| JDSC0601C |
1/8 |
12 |
26.5 |
34 |
| JDSC0602C |
1/4 |
14 |
| JDSC0603C |
3/8 |
17 |
30 |
| JDSC0604C |
1/2 |
21 |
| JDSC0801C |
8 |
1/8 |
14 |
12 |
31 |
38 |
| JDSC0802C |
1/4 |
| JDSC0803C |
3/8 |
17 |
| JDSC0804C |
1/2 |
21 |
| JDSC1001C |
10 |
1/8 |
19 |
14 |
37 |
46 |
| JDSC1002C |
1/4 |
| JDSC1003C |
3/8 |
| JDSC1004C |
1/2 |
21 |
| JDSC1202C |
12 |
1/4 |
19 |
17 |
| JDSC1203C |
3/8 |
| JDSC1204C |
1/2 |
21 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L |
H |
| JDSC041032C |
5/32 |
10-32UNF |
8 |
8 |
23 |
30 |
| JDSC0401CN |
1/8 |
10 |
31 |
| JDSC0402CN |
1/4 |
14 |
| JDSC071032C |
1/4 |
10-32UNF |
8 |
10 |
23.5 |
30 |
| JDSC0701CN |
1/8 |
12 |
26.5 |
34 |
| JDSC0702CN |
1/4 |
14 |
| JDSC0703CN |
3/8 |
17 |
30 |
| JDSC0704CN |
1/2 |
21 |
| JDSC0801CN |
5/16 |
1/8 |
14 |
12 |
31 |
38 |
| JDSC0802CN |
1/4 |
| JDSC0803CN |
3/8 |
17 |
| JDSC0804CN |
1/2 |
21 |
| JDSC0901CN |
3/8 |
1/8 |
19 |
14 |
37 |
46 |
| JDSC0902CN |
1/4 |
| JDSC0903CN |
3/8 |
| JDSC0904CN |
1/2 |
21 |
| JDSC1302CN |
1/2 |
1/4 |
19 |
17 |
| JDSC1303CN |
3/8 |
| JDSC1304CN |
1/2 |
21 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L |
H |
| JDSC04M5C |
4 |
M5x0.8 |
8 |
8 |
23 |
31 |
| JDSC0401CG |
1/8 |
10 |
32 |
| JDSC0402CG |
1/4 |
14 |
| JDSC06M5C |
6 |
M5x0.8 |
8 |
10 |
23.5 |
31 |
| JDSC0601CG |
1/8 |
12 |
26.5 |
35 |
| JDSC0602CG |
1/4 |
14 |
| JDSC0603CG |
3/8 |
17 |
30 |
| JDSC0604CG |
1/2 |
21 |
| JDSC0801CG |
8 |
1/8 |
14 |
12 |
31 |
39 |
| JDSC0802CG |
1/4 |
| JDSC0803CG |
3/8 |
17 |
| JDSC0804CG |
1/2 |
21 |
| JDSC1001CG |
10 |
1/8 |
19 |
14 |
37 |
47 |
| JDSC1002CG |
1/4 |
| JDSC1003CG |
3/8 |
| JDSC1004CG |
1/2 |
21 |
| JDSC1202CG |
12 |
1/4 |
19 |
17 |
| JDSC1203CG |
3/8 |
| JDSC1204CG |
1/2 |
21 |
|
