Brass Fittings
Push In Type Compress Type
  Compress Type

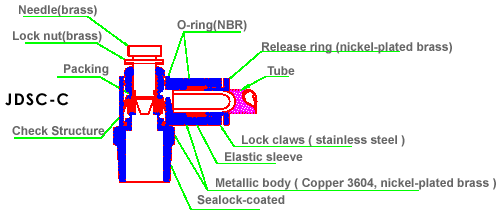

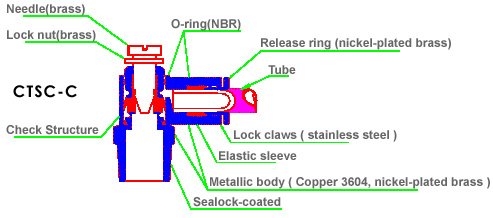

structure



Push in fittings Features:
  • Patent registration number : 132670/103380/88754/96974
  • Minimized size fits any tube lines in small spaces.
  • Metal release ring removal of the air compressing tube after longer fitting period.
  • Air-block lightness.
  • CTSC-C series for low and medium speed control. (recommended for higher control quality.)
  • JDSC-C Series for high and medium speed control.
  • One size with different flow options perfect fitting with air cylinder.
  • Heat resistance and spatter resistance.

Specifications :
  • Temperature range : 0-80¢XC
  • Pressure range : 0-9kgf/cm2
  • Operating Fluid : Air
  • Custom  Made for high temperature is available please advise.

How to order


1. Type                 CT: for medium, low flows.
                              JD: for medium, high flows.


2. SC: Speed Controller     FC: Flow Controller
3. Tube Dia (D)

  Metric Inch
Code 04 06 08 10 12 04 07 08 09 13
Dia 4 6 8 10 12 3.97 6.35 7.94 9.53 12.7

4. Thread size (R)
  PT NPT PS
Code M3 M5 01 02 03 04 1032 01 02 03 04 01 02 03 04
Dia M3X0.5 M5X0.8 R1/8 R1/4 R3/8 R1/2 10-32UNF R1/8 R1/4 R3/8 R1/2 R1/8 R1/4 R3/8 R1/2

5. Blank: Outlet control    B: Inlet control
6. Metallic Body
7. Thread Type


Blank : PT                        N : NPT                         G : PS


CTCN
CTCFN
CTUN/CTUGN

CTLCN

CTOLCN

CTECN

CTBCN

CTDCN

JDSCCN

CTSCCN
