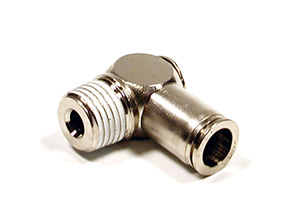

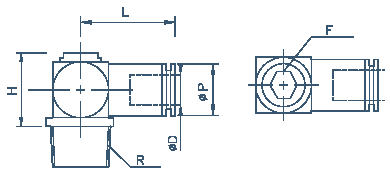

CTOLC Hex.
Holed Elbow |
 |
 |
| ˇiSwivelˇj |
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L |
H |
| CTOL04M5C |
4 |
M5x0.8 |
3 |
8 |
19 |
15 |
| CTOL0401C |
1/8 |
14 |
| CTOL0402C |
1/4 |
| CTOL06M5C |
6 |
M5x0.8 |
10 |
19.5 |
15 |
| CTOL0601C |
1/8 |
4 |
14 |
| CTOL0602C |
1/4 |
21 |
17 |
| CTOL0603C |
3/8 |
22.5 |
21 |
| CTOL0801C |
8 |
1/8 |
12 |
21 |
17 |
| CTOL0802C |
1/4 |
| CTOL0803C |
3/8 |
6 |
22.5 |
21 |
| CTOL1001C |
10 |
1/8 |
14 |
24 |
21 |
| CTOL1002C |
1/4 |
| CTOL1003C |
3/8 |
| CTOL1202C |
12 |
1/4 |
8 |
17 |
26.5 |
25 |
| CTOL1203C |
3/8 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L |
H |
| CTOL041032C |
5/32 |
10-32UNF |
3 |
8 |
19 |
15 |
| CTOL0401CN |
1/8 |
14 |
| CTOL0402CN |
1/4 |
| CTOL071032C |
1/4 |
10-32UNF |
10 |
19.5 |
15 |
| CTOL0701CN |
1/8 |
4 |
14 |
| CTOL0702CN |
1/4 |
21 |
17 |
| CTOL0703CN |
3/8 |
22.5 |
21 |
| CTOL0801CN |
5/16 |
1/8 |
14 |
21 |
17 |
| CTOL0802CN |
1/4 |
| CTOL0803CN |
3/8 |
6 |
22.5 |
21 |
| CTOL0901CN |
3/8 |
1/8 |
16 |
24 |
21 |
| CTOL0902CN |
1/4 |
| CTOL0903CN |
3/8 |
| CTOL1302CN |
1/2 |
1/4 |
8 |
19 |
26.5 |
25 |
| CTOL1303CN |
3/8 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L |
H |
| CTOL04M5C |
4 |
M5x0.8 |
3 |
8 |
19 |
15 |
| CTOL0401CG |
1/8 |
14 |
| CTOL0402CG |
1/4 |
| CTOL06M5C |
6 |
M5x0.8 |
12 |
19.5 |
15 |
| CTOL0601CG |
1/8 |
4 |
14 |
| CTOL0602CG |
1/4 |
21 |
17 |
| CTOL0603CG |
3/8 |
22.5 |
21 |
| CTOL0801CG |
8 |
1/8 |
14 |
21 |
17 |
| CTOL0802CG |
1/4 |
| CTOL0803CG |
3/8 |
6 |
22.5 |
21 |
| CTOL1001CG |
10 |
1/8 |
16 |
24 |
21 |
| CTOL1002CG |
1/4 |
| CTOL1003CG |
3/8 |
| CTOL1202CG |
12 |
1/4 |
8 |
19 |
26.5 |
25 |
| CTOL1203CG |
3/8 |
|
