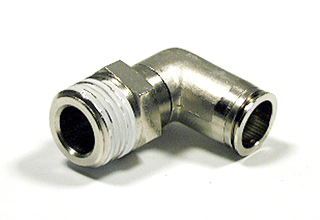

CTLC Elbow |
 |
 |
| ˇiSwivelˇj |
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L/2 |
H |
| CTL04M5C |
4 |
M5x0.8 |
12 |
10 |
21 |
26 |
| CTL0401C |
1/8 |
27 |
| CTL0402C |
1/4 |
14 |
| CTL06M5C |
6 |
M5x0.8 |
12 |
10 |
21 |
26 |
| CTL0601C |
1/8 |
27 |
| CTL0602C |
1/4 |
14 |
| CTL0603C |
3/8 |
17 |
30 |
| CTL0801C |
8 |
1/8 |
14 |
12 |
22 |
| CTL0802C |
1/4 |
| CTL0803C |
3/8 |
17 |
| CTL1002C |
10 |
1/4 |
14 |
23 |
32 |
| CTL1003C |
3/8 |
| CTL1004C |
1/2 |
21 |
| CTL1202C |
12 |
1/4 |
19 |
17 |
26.5 |
35 |
| CTL1203C |
3/8 |
21 |
| CTL1204C |
1/2 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L/2 |
H |
| CTL041032C |
5/32 |
10-32UNF |
12 |
10 |
21 |
26 |
| CTL0401CN |
1/8 |
27 |
| CTL0402CN |
1/4 |
14 |
| CTL071032C |
1/4 |
10-32UNF |
12 |
10 |
21 |
26 |
| CTL0701CN |
1/8 |
27 |
| CTL0702CN |
1/4 |
14 |
| CTL0703CN |
3/8 |
17 |
30 |
| CTL0801CN |
5/16 |
1/8 |
14 |
12 |
22 |
| CTL0802CN |
1/4 |
| CTL0803CN |
3/8 |
17 |
| CTL0902CN |
3/8 |
1/4 |
14 |
23 |
32 |
| CTL0903CN |
3/8 |
| CTL0904CN |
1/2 |
21 |
| CTL1302CN |
1/2 |
1/4 |
19 |
17 |
26.5 |
35 |
| CTL1303CN |
3/8 |
21 |
| CTL1304CN |
1/2 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L/2 |
H |
| CTL04M5C |
4 |
M5x0.8 |
12 |
10 |
21 |
26 |
| CTL0401CG |
1/8 |
27 |
| CTL0402CG |
1/4 |
14 |
| CTL06M5C |
6 |
M5x0.8 |
12 |
10 |
21 |
26 |
| CTL0601CG |
1/8 |
27 |
| CTL0602CG |
1/4 |
14 |
| CTL0603CG |
3/8 |
17 |
30 |
| CTL0801CG |
8 |
1/8 |
14 |
12 |
22 |
| CTL0802CG |
1/4 |
| CTL0803CG |
3/8 |
17 |
| CTL1002CG |
10 |
1/4 |
14 |
23 |
32 |
| CTL1003CG |
3/8 |
| CTL1004CG |
1/2 |
21 |
| CTL1202CG |
12 |
1/4 |
19 |
17 |
26.5 |
35 |
| CTL1203CG |
3/8 |
21 |
| CTL1204CG |
1/2 |
|
