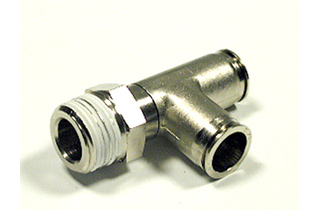

CTDC Branch
Tee |
 |
 |
| ˇiSwivelˇj |
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L |
H |
| CTD04M5C |
4 |
M5x0.8 |
12 |
10 |
23 |
34 |
| CTD0401C |
1/8 |
35 |
| CTD0402C |
1/4 |
14 |
| CTD06M5C |
6 |
M5x0.8 |
12 |
10 |
23 |
34 |
| CTD0601C |
1/8 |
35 |
| CTD0602C |
1/4 |
14 |
| CTD0603C |
3/8 |
17 |
| CTD0801C |
8 |
1/8 |
14 |
12 |
25 |
39 |
| CTD0802C |
1/4 |
| CTD0803C |
3/8 |
17 |
| CTD1002C |
10 |
1/4 |
14 |
28 |
44 |
| CTD1003C |
3/8 |
| CTD1004C |
1/2 |
21 |
| CTD1202C |
12 |
1/4 |
19 |
17 |
35 |
53 |
| CTD1203C |
3/8 |
21 |
| CTD1204C |
1/2 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L |
H |
| CTD041032C |
5/32 |
10-32UNF |
12 |
10 |
23 |
34 |
| CTD0401CN |
1/8 |
35 |
| CTD0402CN |
1/4 |
14 |
| CTD071032C |
1/4 |
10-32UNF |
12 |
10 |
23 |
34 |
| CTD0701CN |
1/8 |
35 |
| CTD0702CN |
1/4 |
14 |
| CTD0703CN |
|
17 |
| CTD0801CN |
5/16 |
1/8 |
14 |
12 |
25 |
39 |
| CTD0802CN |
1/4 |
| CTD0803CN |
3/8 |
17 |
| CTD0902CN |
3/8 |
1/4 |
14 |
28 |
44 |
| CTD0903CN |
3/8 |
| CTD0904CN |
1/2 |
21 |
| CTD1302CN |
1/2 |
1/4 |
19 |
17 |
35 |
53 |
| CTD1303CN |
3/8 |
21 |
| CTD1304CN |
1/2 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L |
H |
| CTD04M5C |
4 |
M5x0.8 |
12 |
10 |
23 |
34 |
| CTD0401CG |
1/8 |
35 |
| CTD0402CG |
1/4 |
14 |
| CTD06M5C |
6 |
M5x0.8 |
12 |
10 |
23 |
34 |
| CTD0601CG |
1/8 |
35 |
| CTD0602CG |
1/4 |
14 |
| CTD0603CG |
3/8 |
17 |
| CTD0801CG |
8 |
1/8 |
14 |
12 |
25 |
39 |
| CTD0802CG |
1/4 |
| CTD0803CG |
3/8 |
17 |
| CTD1002CG |
10 |
1/4 |
14 |
28 |
44 |
| CTD1003CG |
3/8 |
| CTD1004CG |
1/2 |
21 |
| CTD1202CG |
12 |
1/4 |
19 |
17 |
35 |
53 |
| CTD1203CG |
3/8 |
21 |
| CTD1204CG |
1/2 |
|
