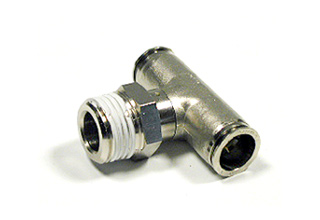

CTBC Tee |
 |
 |
| ˇiSwivelˇj |
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L/2 |
H |
| CTB04M5C |
4 |
M5x0.8 |
12 |
10 |
18 |
26 |
| CTB0401C |
1/8 |
27 |
| CTB0402C |
1/4 |
14 |
| CTB06M5C |
6 |
M5x0.8 |
12 |
10 |
18 |
26 |
| CTB0601C |
1/8 |
27 |
| CTB0602C |
1/4 |
14 |
| CTB0603C |
3/8 |
17 |
30 |
| CTB0801C |
8 |
1/8 |
14 |
12 |
19 |
| CTB0802C |
1/4 |
| CTB0803C |
3/8 |
17 |
| CTB1002C |
10 |
1/4 |
14 |
21 |
32 |
| CTB1003C |
3/8 |
| CTB1004C |
1/2 |
21 |
| CTB1202C |
12 |
1/4 |
19 |
17 |
26.5 |
35 |
| CTB1203C |
3/8 |
21 |
| CTB1204C |
1/2 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L/2 |
H |
| CTB041032C |
5/32 |
10-32UNF |
12 |
10 |
18 |
26 |
| CTB0401CN |
1/8 |
27 |
| CTB0402CN |
1/4 |
14 |
| CTB071032C |
1/4 |
10-32UNF |
12 |
10 |
18 |
26 |
| CTB0701CN |
1/8 |
27 |
| CTB0702CN |
1/4 |
14 |
| CTB0703CN |
3/8 |
17 |
30 |
| CTB0801CN |
5/16 |
1/8 |
14 |
12 |
19 |
| CTB0802CN |
1/4 |
| CTB0803CN |
3/8 |
17 |
| CTB0902CN |
3/8 |
1/4 |
14 |
21 |
32 |
| CTB0903CN |
3/8 |
| CTB0904CN |
1/2 |
21 |
| CTB1302CN |
1/2 |
1/4 |
19 |
17 |
26.5 |
35 |
| CTB1303CN |
3/8 |
21 |
| CTB1304CN |
1/2 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L/2 |
H |
| CTB04M5C |
4 |
M5x0.8 |
12 |
10 |
18 |
26 |
| CTB0401CG |
1/8 |
27 |
| CTB0402CG |
1/4 |
14 |
| CTB06M5C |
6 |
M5x0.8 |
12 |
10 |
18 |
26 |
| CTB0601CG |
1/8 |
27 |
| CTB0602CG |
1/4 |
14 |
| CTB0603CG |
3/8 |
17 |
30 |
| CTB0801CG |
8 |
1/8 |
14 |
12 |
19 |
| CTB0802CG |
1/4 |
| CTB0803CG |
3/8 |
17 |
| CTB1002CG |
10 |
1/4 |
14 |
21 |
32 |
| CTB1003CG |
3/8 |
| CTB1004CG |
1/2 |
21 |
| CTB1202CG |
12 |
1/4 |
19 |
17 |
26.5 |
35 |
| CTB1203CG |
3/8 |
21 |
| CTB1204CG |
1/2 |
|
