  Automatic Drainers - OEM / custom made







Operating pressure:
0 ~ 9 kg / c㎡
Proof pressure : 17 kg/c㎡
Ambient temperature : + 10 ℃ ~ + 60 ℃

Features :

Automatic Drainer AD-200 is equipped with NBR foaming float ball, which is light in weight, and does not absorb water. This float ball is very sensitive to water surface
buoyancy and quick to respond, when the water in filter cup reaches limit, the float ball will trigger the discharge to automatically drain.

Float ball sizes:

36 mm Dia. x 20.0 mm H.

Compatible with various brands:

Japanese : Kuroda, CKD, Koganei, Taiyo, SMC
European : Camozzi, Pneumax, Univer, Metal Work, Ultrafilter, Walker,, Aircel, Atlas Copco, Domnick Hunter, Donaldson, Ingersoll Rand, Kaeser, Parker, Quincy
America : Parker, Numatics, Norgren, M/P, COILHOSE, Arrow, Wilkerson , Watts, Atlas Copco, Donaldson, Ingersoll Rand, Kaeser, Beko, Zeks, Van Air

~~~ OEM and custom made are welcome ~~~

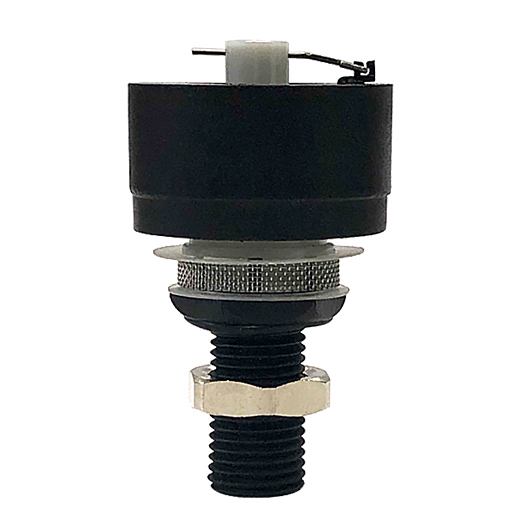

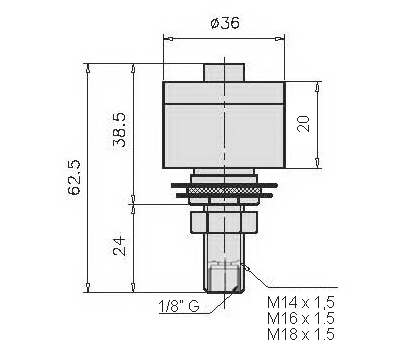

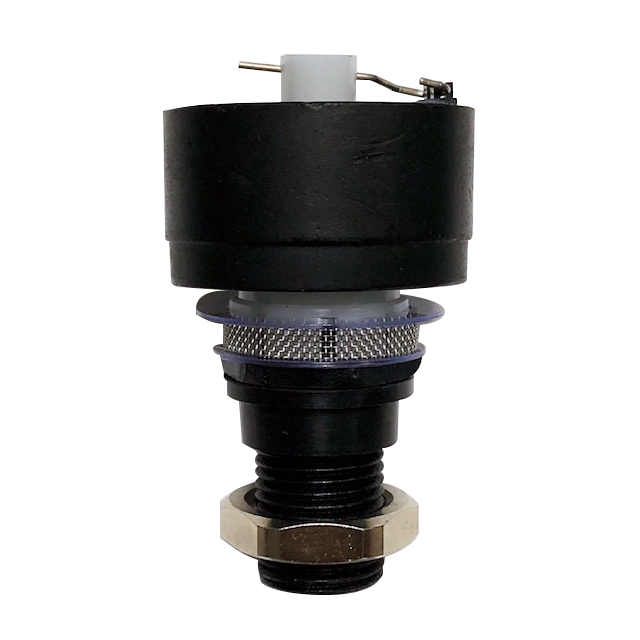

Model : AD-200A

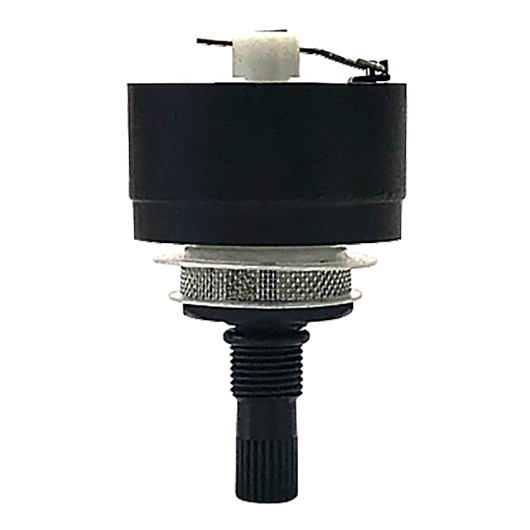

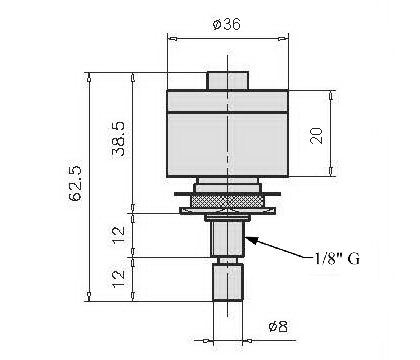

Model : AD-200C

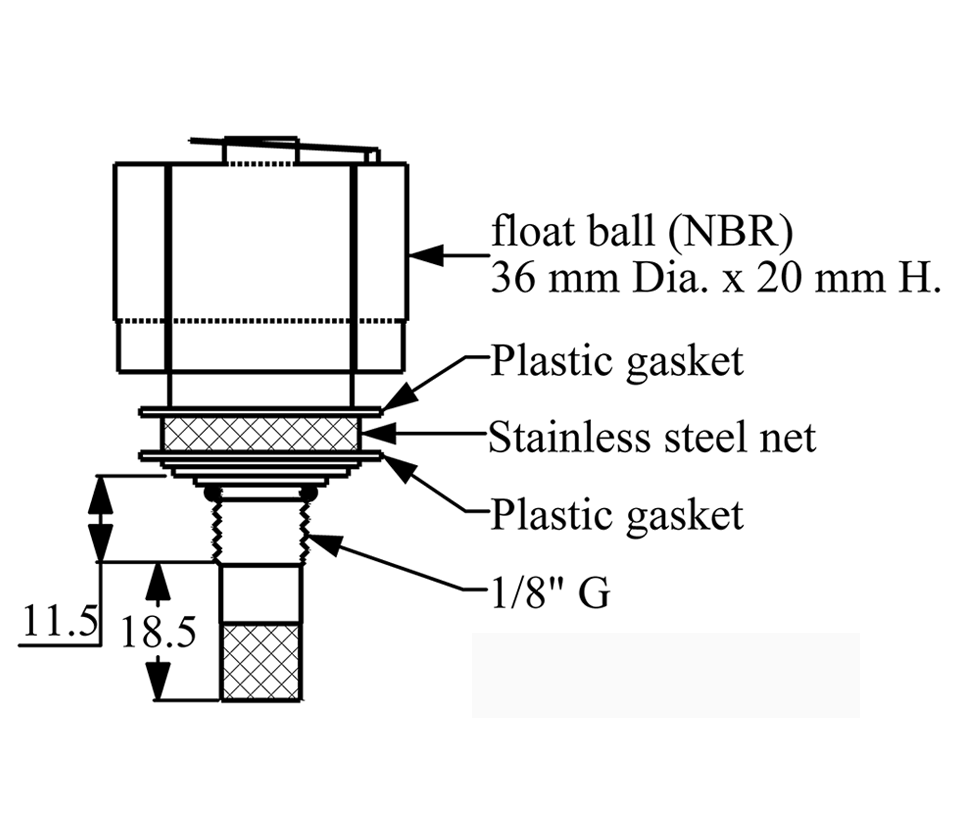

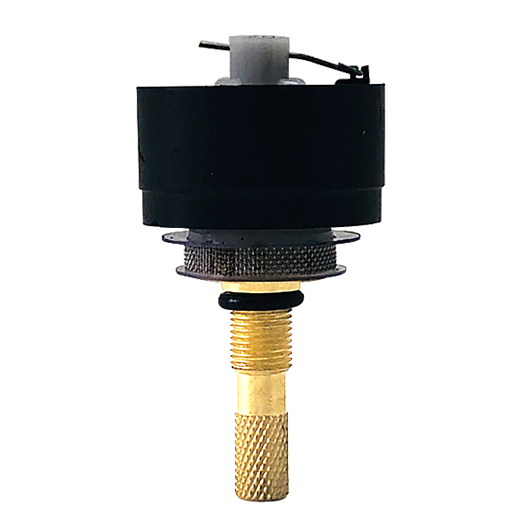

Model : AD-200CB

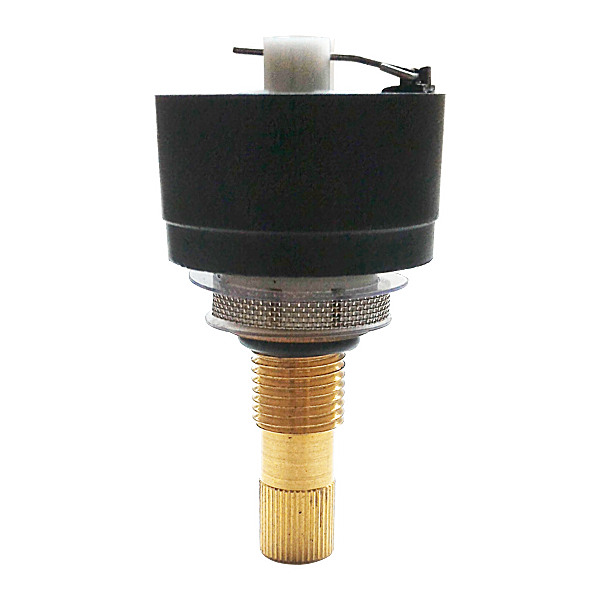

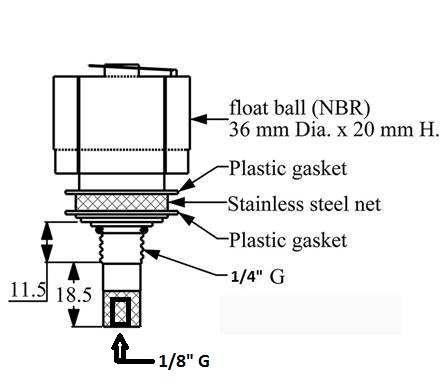

Model : AD-200CB 1/4" G

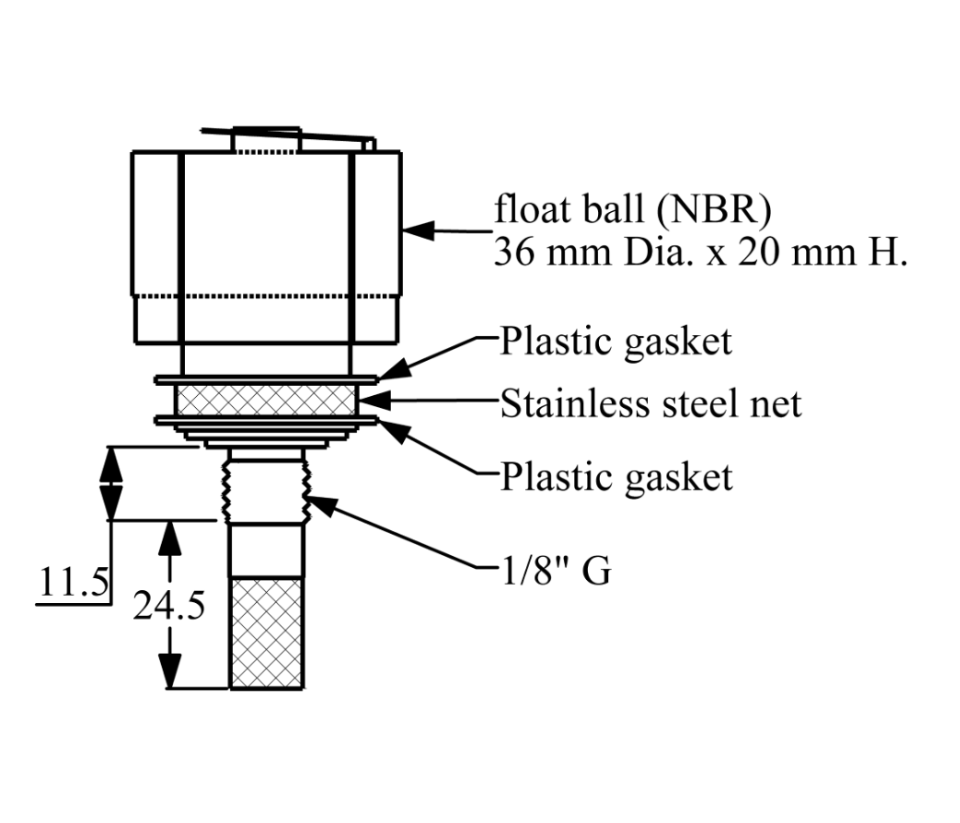

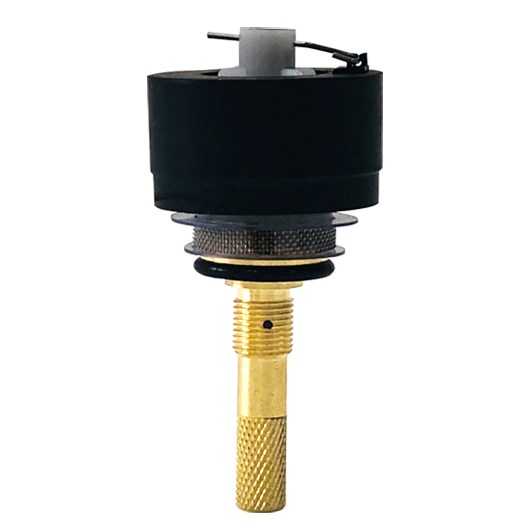

Model : AD-200CB-L

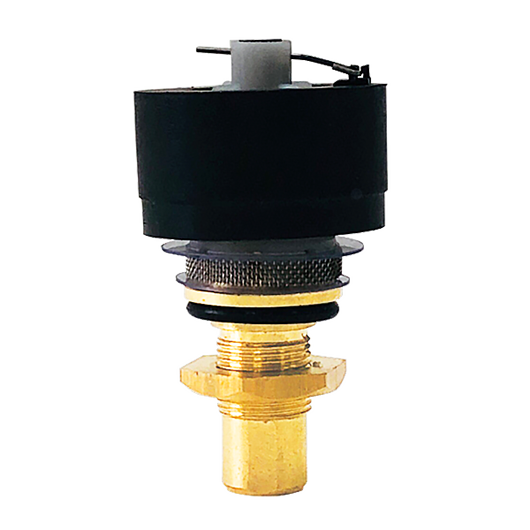

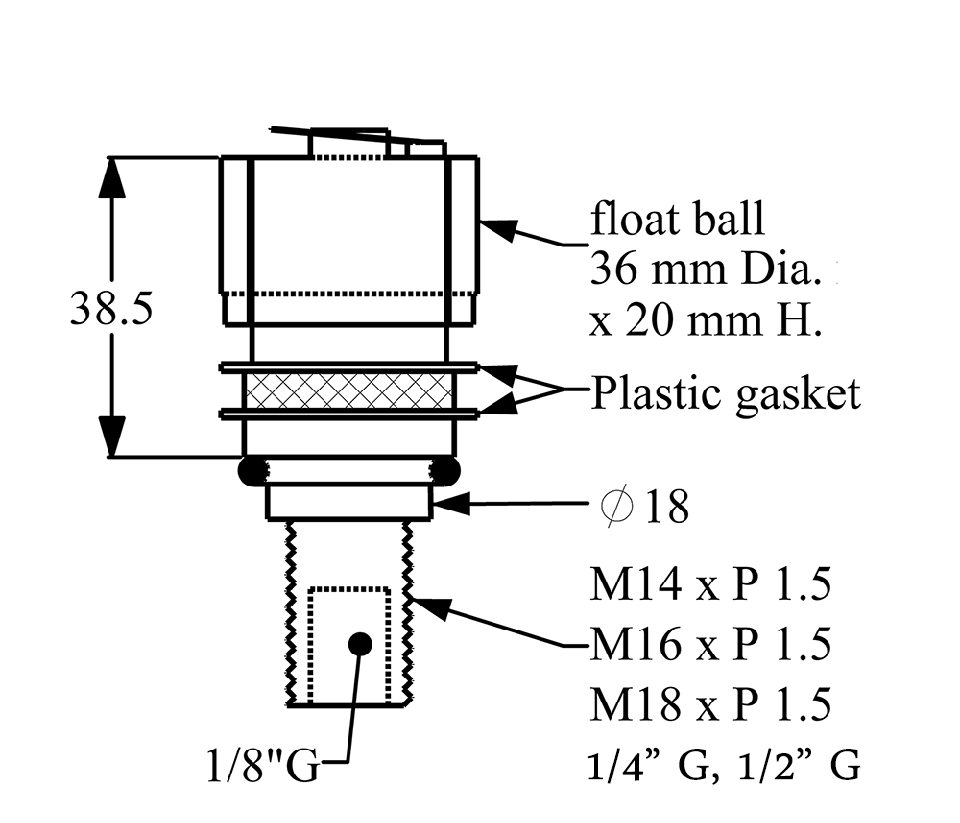

Model : AD-200AB-F

male thread:M14,M16,M18,1/4"G,1/2"G
Note : brass shaft - custom made

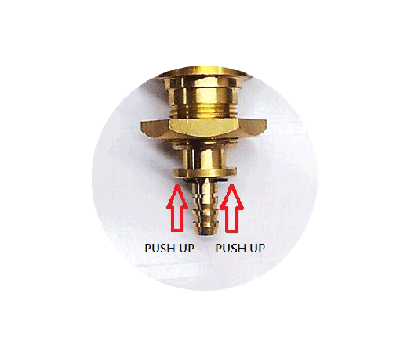

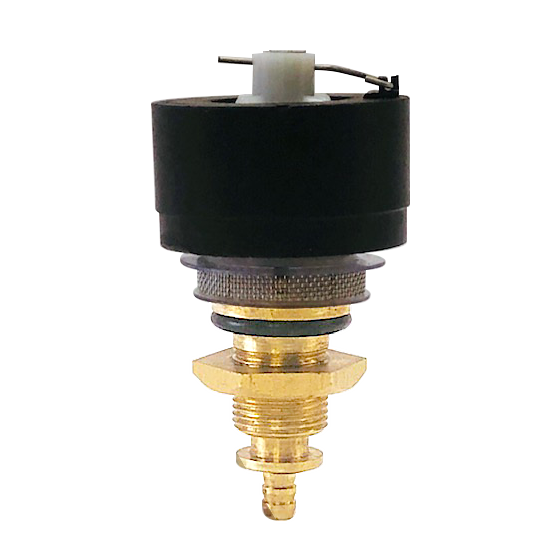

Model : AD-200AB-M

2-in-1 auto drain with manual
Note: brass shaft for M14,M16,M18,1/4"G,1/2"G
          - custom made.

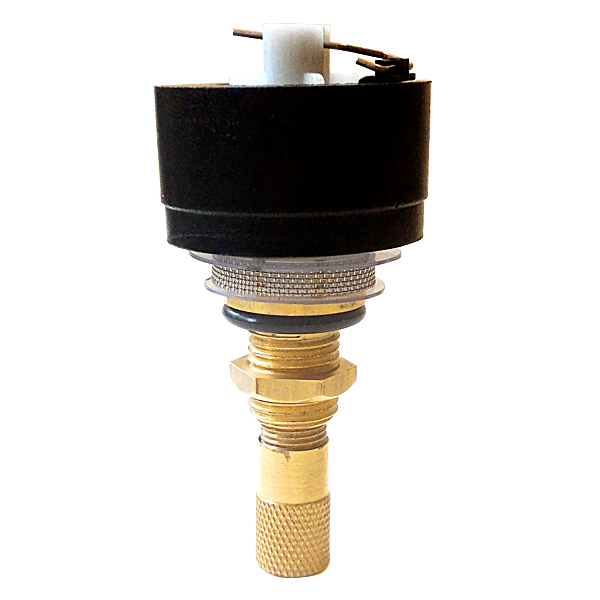

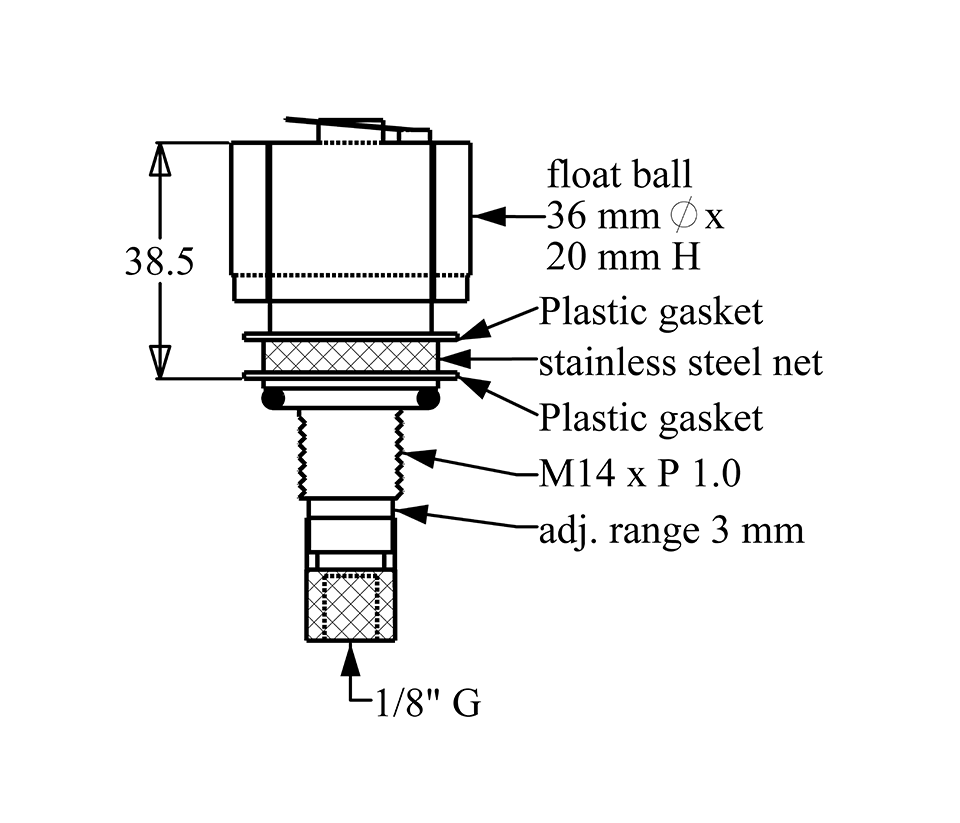

AD-M-200

2-in-1 auto drain with manual
Note : 1/8” outlet normally closed with manual by pass

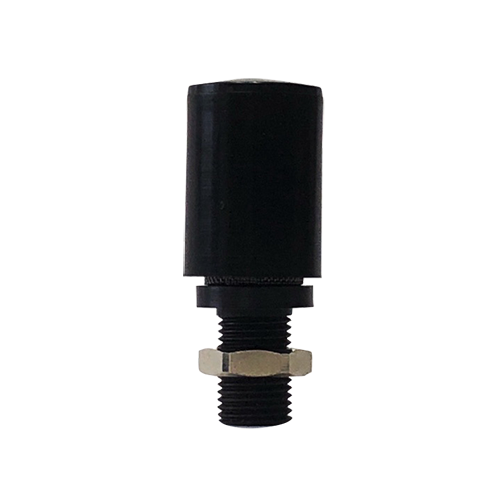

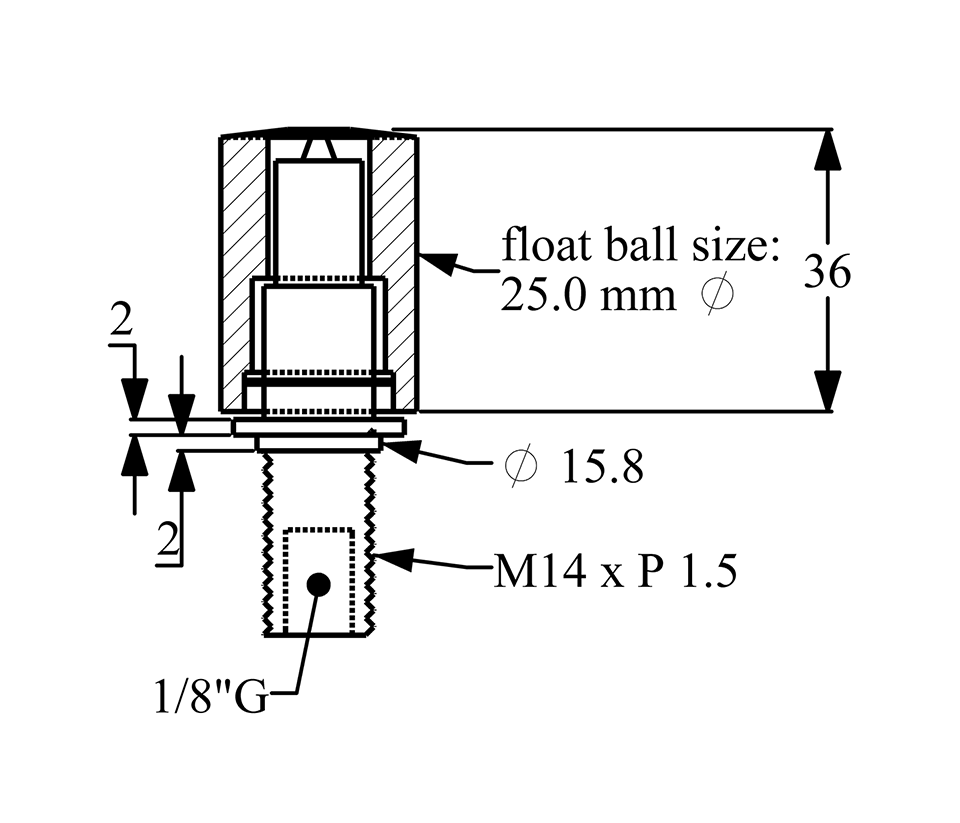

Model : AD-150

Note: plastic shaft for 14mm Ø, 16mm Ø

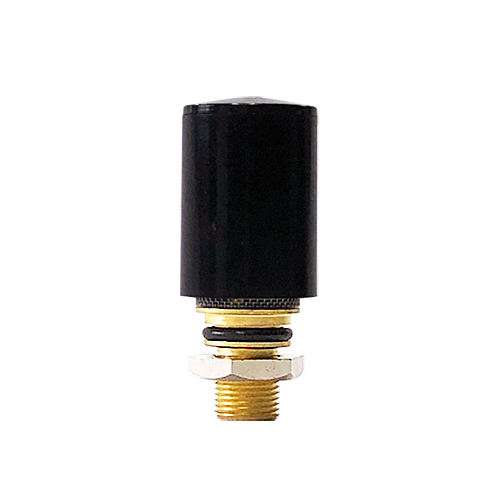

Model : AD-150B

Note : brass shaft for
a. 8, 10, 12mm Ø with hose end joint
b. 14, 16mm Ø with 1/8"G

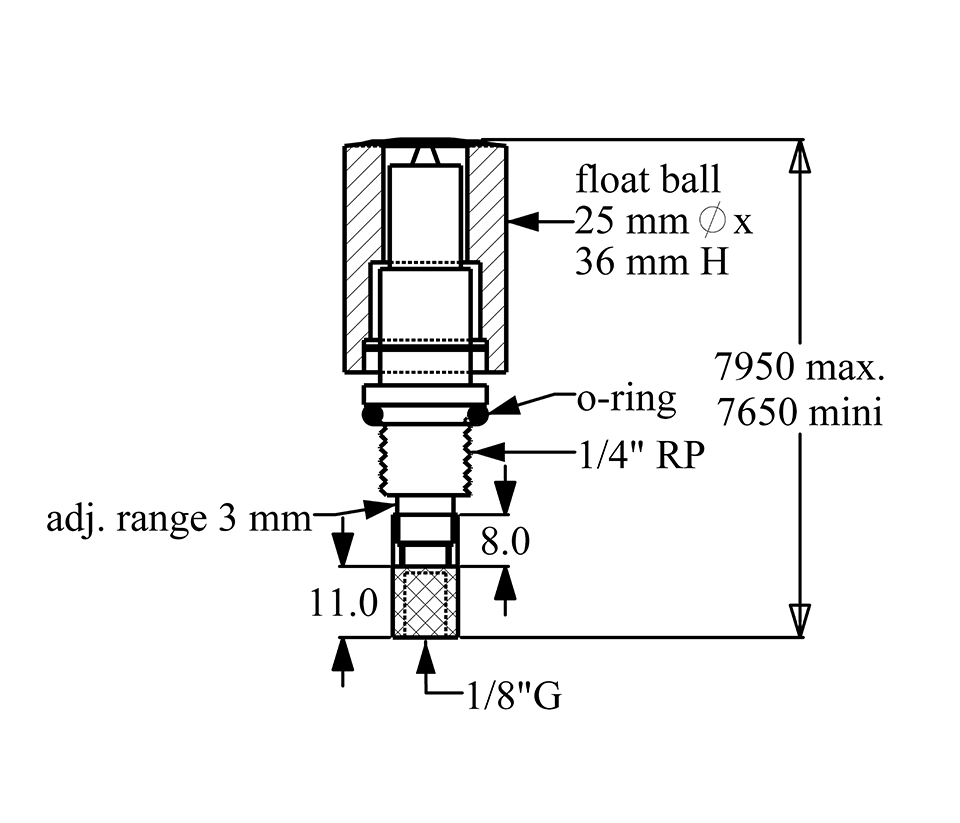

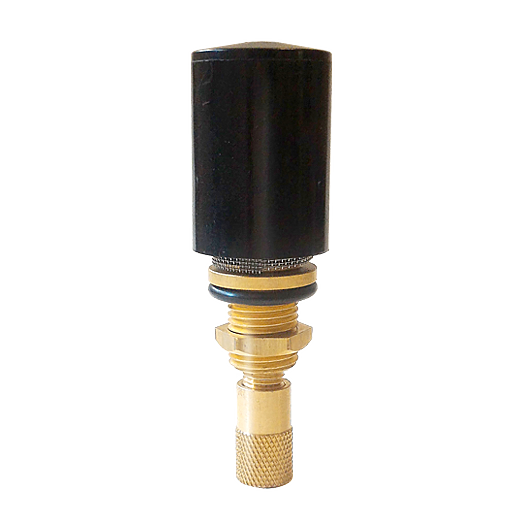

AD-M-150

2-in-1 auto drain with manual
Note : 1/8” outlet normally closed with manual by -pass

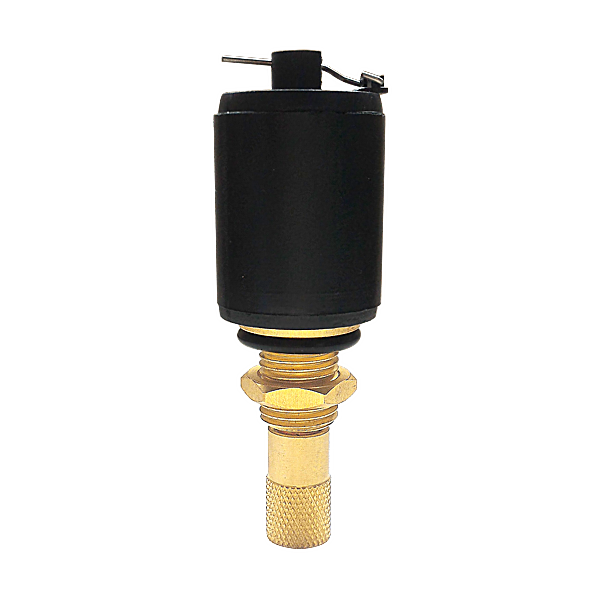

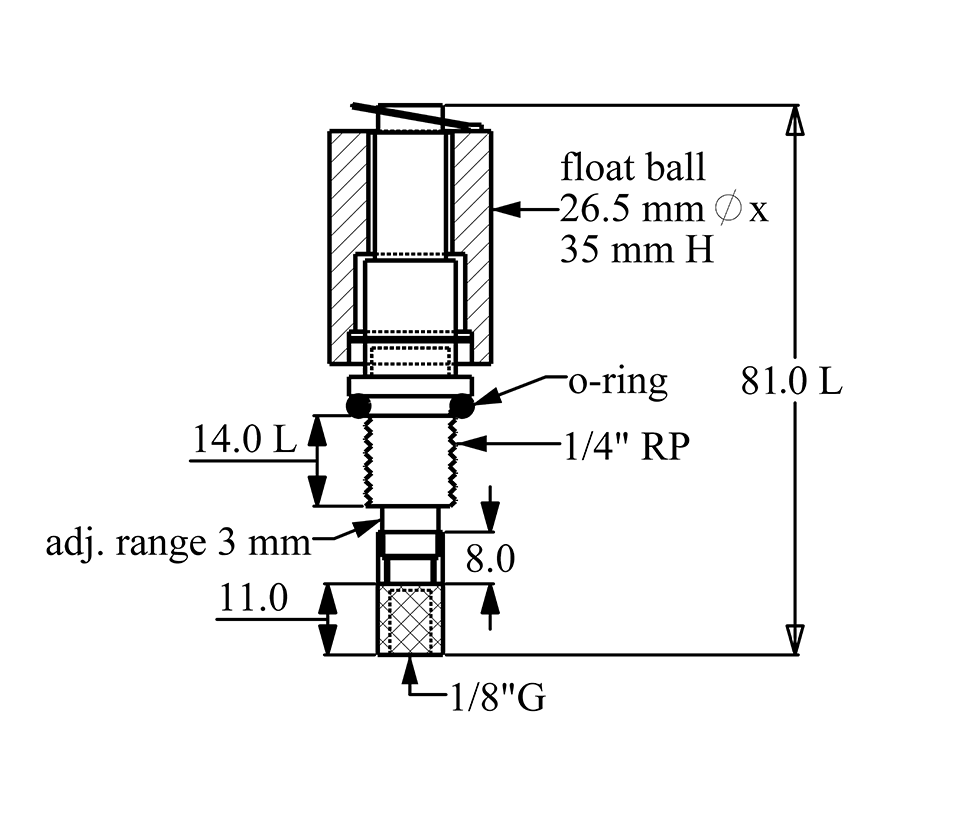

AD-M-150N

2-in-1 auto drain with manual
Note : 1/8” outlet normally closed with manual by pass

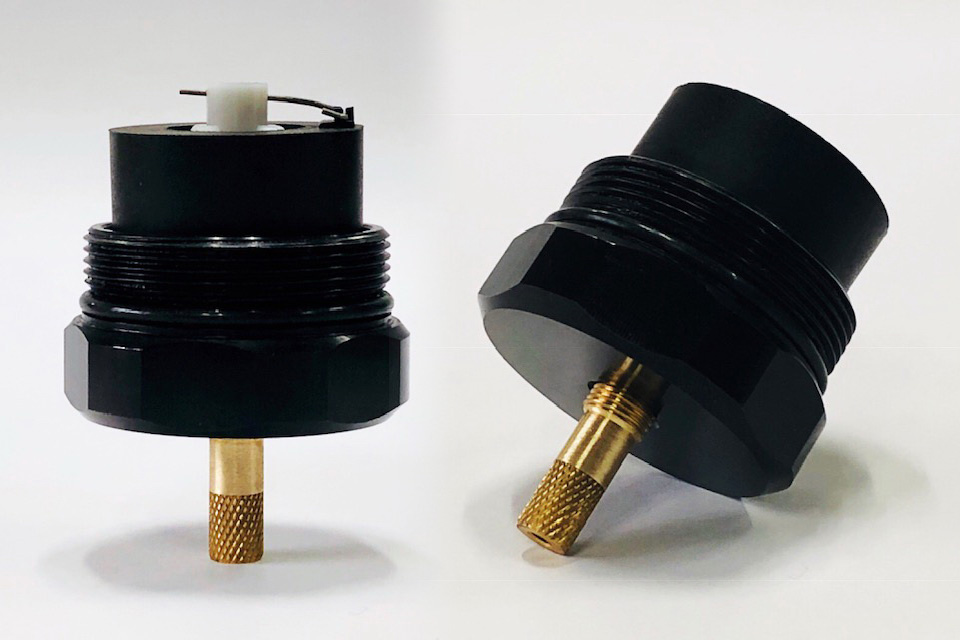

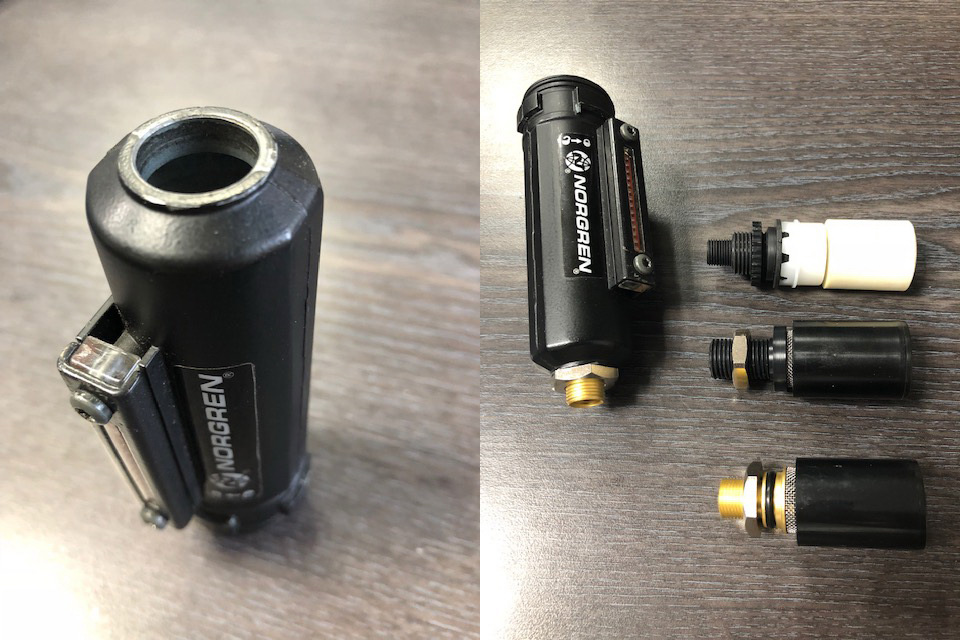

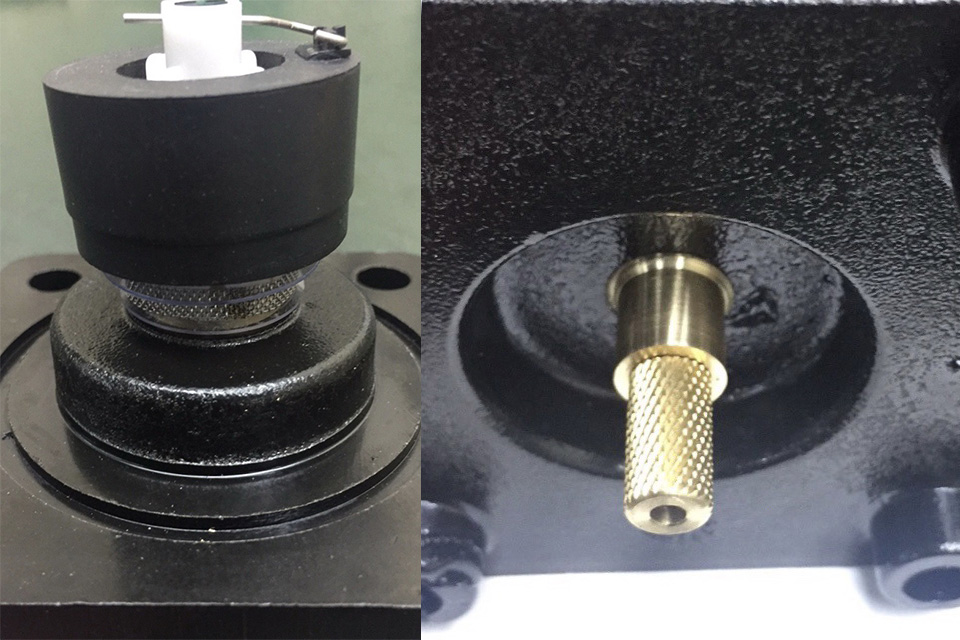

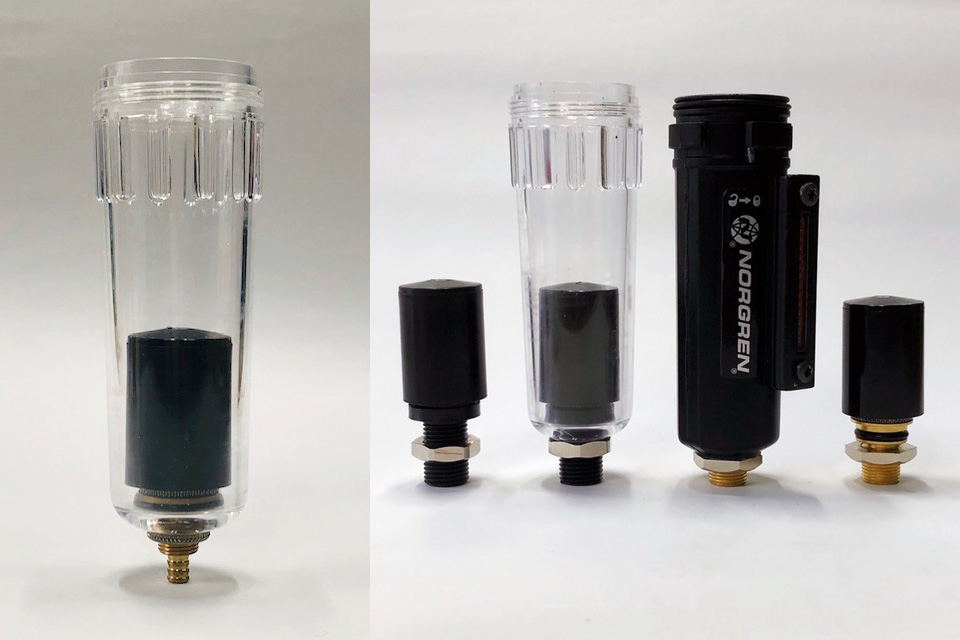

Custom made examples:
