MS-51 Series


Specification
Type
Characteristics
MS - 51R MS - 51N MS - 51P
Wiring 2 Wire 3 Wire
Connect Diagram
Switching logic Normally open Solid state output, Normally open
Output Reed switch NPN Sinking PNP Sourcing
Lead wire type Horizontal
Load voltage 5 ~ 120V DC/AC 5~28V DC
Load current 100mA Max. 200mA Max.
Switching rating 10W Max. 6W Max
Current consumption -- 20mA Max. @ 24V 18mA Max. @ 24V
Voltage drop 2.5V Max. @ 40mA DC 0.5V Max. @ 200mA (Risistive load)
Leakage current --- 0.01 mA Max.
Frequency 200Hz 1000Hz
Shock 30G 50G
Vibration 90 m/s2 (9G), Double amplitude 1.5 mm
Insulation resistant DC 500V 100M Ω (Lead wire to case)
Withstand voltage AC 1000V (50/60Hz) 1minute (Lead wire to case)
CE & Protection IP EN60947-5-2      IEC529   IP67(NEMA 6)
Indicator Red LED Green LED
Cable 4.0 ,2C,Gray PVC 4.0,3C,Black PVC
Temperature range -10 ~ 70 ℃
Protection circuit --- Reverse polarity; Surge suppression

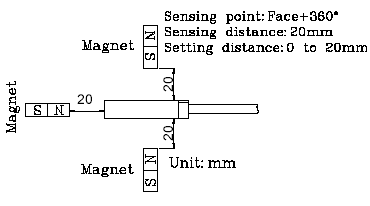

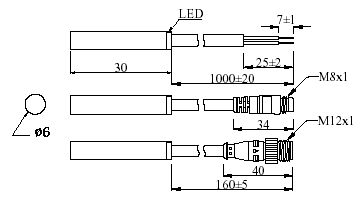

Dimensions
M8 & M12-Connector
MS-51R
MS-51R-M8QD
MS-51R-M12QD
MS-51N
MS-51N-M8QD
MS-51N-M12QD
MS-51P
MS-51P-M8QD
MS-51P-M12QD
M8 ( 2-Wire QD Link) M8 ( 2-Wire E-QD Link) M8 ( 3-Wire QD Link) M12 ( 3-Wire QD Link)
