MS-12 Series

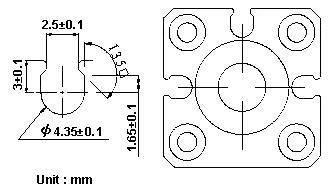

Groove :

Specification
Type
Characteristics
MS - 12R MS - 12N MS - 12P
Wiring 2 Wire 3 Wire
Connect Diagram
Switching logic Normally open Solid state output, Normally open
Output Reed switch NPN Sinking PNP Sourcing
Lead wire type Horizontal
Load voltage 5 ~ 120V DC/AC 5~28V DC
Load current 100mA Max. 200mA Max.
Switching rating 10W Max. 6W Max.
Current consumption --- 20mA Max. @ 24V 18mA Max. @ 24V
Voltage drop 2.5V Max. @ 40mA DC 0.5V Max.@ 200mA (Resistive load)
Leakage current --- 0.01mA Max.
Frequency 200Hz 1000Hz
Shock 30G 50G
Vibration 90 m/s2 (9G), Double amplitude 1.5 mm
Insulation resistant DC 500V 100M Ω (Lead wire to case)
Withstand voltage AC 1000V (50/60Hz) 1minute (Lead wire to case)
CE & Protection IP EN60947-5-2       IEC529      IP67(NEMA 6)
Indicator Red LED Red LED Green LED
Cable 2.8,2C,Gray PVC 2.8,3C,Black PVC
Temperature range -10 ~ 70 ℃
Protection circuit --- Reverse polarity; Surge suppression
Dimensions
