Mini Water Proof Photo Sensor - MR Series
HOME


¡½ Operating Voltage¡GDC10~30V.
¡½ High Compact 13.5 <W> X 25.0 <H> X 30.0<D>
¡½ Polarity Reversed Protection Circuit.
¡½ High Protection - IP-67. avaible
¡½ Protected By Short Circuit & Polarity reversed-protection.
¡½ Long Sensing Distance¡G
  Reflex Type¡G30cm¡B60cm
Mirror Reflex Type¡G2m
Thru Beam Type¡G 6m

Type Figure Model Protection Class Sensible Distance Guiding of Model
Reflex Type Lead
Wire
Type
MR - 10X IP - 65 10 M
1. Series
  M¡GMS SERIES
P¡GPlug SERIES

2. Type
  R = Reflex Type
G = Mirror Reflex Type
T = Thru Beam Type

3. Sensing Distance
  10M = 10m
30 = 30cm
2M = 2m
6M = 6m

4. Emitter
  X¡GInfrared LED.
R¡GRed LED.

5. Output Status
  non¡GNO TYPE
B¡GNC TYPE

6. Protection Class
  non¡GLead Wire Type
PG¡GM8 Lead Wure Type
MR - 10XP IP - 67
MR - 30X IP - 65 30 M
MR - 30XP IP - 67
MR - 60X IP - 65 60 M
MR - 60XP IP - 67
Plug Type PR - 10X IP - 65 10 M
PR - 10XP IP - 67
PR - 30X IP - 65 30 M
PR - 30XP IP - 67
PR - 60X IP - 65 60 M
PR - 60XP IP - 67
M8 Lead Wire Type MR - 10X - PG IP - 65 10 M
MR - 10XP - PG IP - 67
MR - 30X - PG IP - 65 30 M
MR - 30XP - PG IP - 67
MR - 60X - PG IP - 65 60 M
MR - 60XP - PG IP - 67
Mirror Reflex Type Lead
Wire
Type
MG - 2MX IP - 65 2 M
MG - 2MXP IP - 67 2 M
Plug Type PG - 2MX IP - 65 2 M
PG - 2MXP IP - 67 2 M
M8 Lead Wire Type MG - 2MX - PG IP - 65 2 M
MG - 2MXP - PG IP - 67 2 M
Thru Beam Type Lead
Wire
Type
MT - 6MX IP - 65 6 M
MT - 6MXP IP -67 6 M
Plug Type PT - 6MX IP - 65 6 M
PT - 6MXP IP -67 6 M
M8 Lead Wire Type MT - 6MX - PG IP - 65 6M
MT - 6MXP - PG IP -67 6M

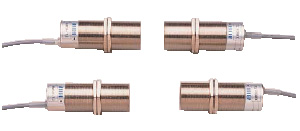

LT Series¡@M30 Long Distance Thru Beam Type Photo Sensor

¡½ Longer Setting Distance¡G150m.
¡½ Enouth Setting Margin¡GOver 50% of Setting Distance.
¡½ Two Way Output¡GNPN & PNP.

Model LT - 40MX LT - 80MX LT - 150MX
Setting distance 40M ¡Ó 50% 80M ¡Ó 50% 150M ¡Ó 50%
Min.Sensible Object 10.0 £X 30.0 £X 50.0 £X
Response Time 5 ms 50 ms
Operating Voltage

10 ~ 30 VDC¡ARipple < ¡Ó 20% of peak to peak

Output Method

NPN & PNP Two outputs 150 mA

Cable

Emitter¡G2Cores / 4.2 £X X 2M¡FReceiver¡G4C / 5.0 £X X 2M

Operating Temp. / Hum. -20¢J ~ +80¢J¡F35% ~ 85% RH
