High Speed Counter - EMC Series |
|
|
|
 |
|
|
|
|
| |
| ¡½ |
High Response Frequency |
| ¡½ |
High Reliability |
| ¡½ |
High Noise Resistance |
| ¡½ |
DIN Outline |
|
 |
|
| Outline |
DIN 48x48 |
DIN 72x72 |
DIN 96x48 |
| Model |
EMC-462 |
EMC-362 |
EMC-262 |
| Digits |
6 |
| Output method |
Two relay |
| Contact rated |
3 A / 250VAC |
| Power supply |
90 ~ 265 VAC 50/60 Hz |
| Current consumption |
5VA max. |
| DC output |
12 V / 100 mA max. |
| Input method |
NPN single phase or two phase selectable |
| Counting method |
Increasing or decreasing counting selectable |
| Response time |
0.1 ~ 999.9 |
| Output control |
N / R / C / A selectable |
| Output reset time |
0.01 ~ 99.99 sec settable |
| Multiplier |
0.001 ~ 9.999 settable |
| Memory method |
EEPROM |
| ESD strength |
Over 8 KV |
| Dielectric strength |
Over 2.5 KV / 1 min., Between power and each other terminal |
| Isolation strength |
Over 100 M£[ / 500 VDC, Between power and each other terminal |
| Operating Circum. |
¡ß25¢J ~ ¡Þ80¢J¡F35% ~ 85% RH |
|
| |

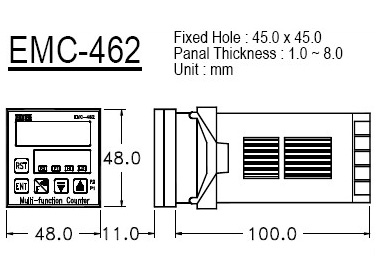

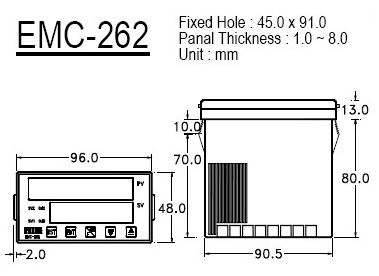

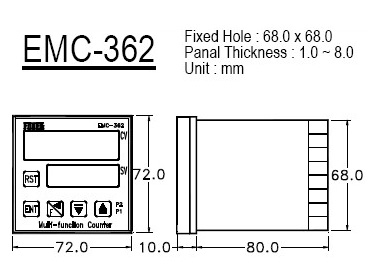

 Outline Dimension |
|
| |
| |
|
| |
|
|
