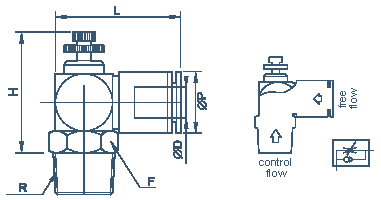

JDSC Elbow
|
 |
 |
| ˇiSwivelˇj |
|
|
|
| Tube(Metric)
- Thread(PT) |
| Model |
 D |
R |
F |
P |
L |
H |
| JDSC04M5 |
4 |
M5x0.8 |
8 |
10 |
23 |
30 |
| JDSC0401 |
1/8 |
10 |
31 |
| JDSC0402 |
1/4 |
14 |
| JDSC06M5 |
6 |
M5x0.8 |
8 |
12 |
23.5 |
30 |
| JDSC0601 |
1/8 |
12 |
14 |
26.5 |
34 |
| JDSC0602 |
1/4 |
14 |
| JDSC0603 |
3/8 |
17 |
30 |
38 |
| JDSC0604 |
1/2 |
21 |
| JDSC0801 |
8 |
1/8 |
14 |
31 |
38 |
| JDSC0802 |
1/4 |
| JDSC0803 |
3/8 |
17 |
| JDSC0804 |
1/2 |
21 |
| JDSC1001 |
10 |
1/8 |
19 |
19 |
36 |
46 |
| JDSC1002 |
1/4 |
| JDSC1003 |
3/8 |
| JDSC1004 |
1/2 |
21 |
| JDSC1202 |
12 |
1/4 |
19 |
| JDSC1203 |
3/8 |
| JDSC1204 |
1/2 |
21 |
|
| |
| Tube(Inch)
- Thread(NPT) |
| Model |
D |
R |
F |
P |
L |
H |
| JDSC041032 |
5/32 |
10-32UNF |
8 |
10 |
23 |
30 |
| JDSC0401N |
1/8 |
10 |
31 |
| JDSC0402N |
1/4 |
14 |
| JDSC071032 |
1/4 |
10-32UNF |
8 |
12 |
23.5 |
30 |
| JDSC0701N |
1/8 |
12 |
14 |
26.5 |
34 |
| JDSC0702N |
1/4 |
14 |
| JDSC0703N |
3/8 |
17 |
30 |
38 |
| JDSC0704N |
1/2 |
21 |
| JDSC0801N |
5/16 |
1/8 |
14 |
31 |
| JDSC0802N |
1/4 |
| JDSC0803N |
3/8 |
17 |
| JDSC0804N |
1/2 |
21 |
| JDSC0901N |
3/8 |
1/8 |
19 |
19 |
36 |
46 |
| JDSC0902N |
1/4 |
| JDSC0903N |
3/8 |
21 |
| JDSC0904N |
1/2 |
| JDSC1302N |
1/2 |
1/4 |
19 |
| JDSC1303N |
3/8 |
| JDSC1304N |
1/2 |
21 |
|
| |
| Tube(Metric)
- Thread(G) |
| Model |
D |
R |
F |
P |
L |
H |
| JDSC04M5 |
4 |
M5x0.8 |
8 |
10 |
23 |
31 |
| JDSC0401G |
1/8 |
10 |
32 |
| JDSC0402G |
1/4 |
14 |
| JDSC06M5 |
6 |
M5x0.8 |
8 |
12 |
23.5 |
31 |
| JDSC0601G |
1/8 |
12 |
14 |
26.5 |
35 |
| JDSC0602G |
1/4 |
14 |
| JDSC0603G |
3/8 |
17 |
30 |
39 |
| JDSC0604G |
1/5 |
21 |
| JDSC0801G |
8 |
1/8 |
14 |
31 |
| JDSC0802G |
1/4 |
| JDSC0803G |
3/8 |
17 |
| JDSC0804G |
1/2 |
21 |
| JDSC1001G |
10 |
1/8 |
19 |
19 |
36 |
47 |
| JDSC1002G |
1/4 |
| JDSC1003G |
3/8 |
| JDSC1004G |
1/2 |
21 |
| JDSC1202G |
12 |
1/4 |
19 |
| JDSC1203G |
3/8 |
| JDSC1204G |
1/2 |
21 |
|
