Speed Controllers
Push In Type Compress Type
  CTSCS
ˇiSwivelˇj
Tube(Metric)   -  Thread(PT)

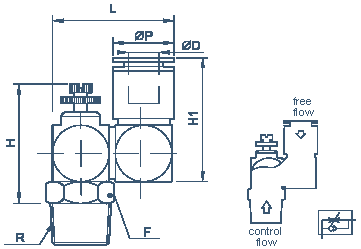

Model D R F P L H H1
CTSCS04M5 4 M5x0.8 8 10 23 30 23
CTSCS0401 1/8 10 31
CTSCS0402 1/4 14
CTSCS06M5 6 M5x0.8 8 12 23.5 30 23.5
CTSCS0601 1/8 12 14 26.5 34 26.5
CTSCS0602 1/4 14
CTSCS0603 3/8 17 30 38 30
CTSCS0604 1/2 21
CTSCS0801 8 1/8 14 31 38 31
CTSCS0802 1/4
CTSCS0803 3/8 17
CTSCS0804 1/2 21
CTSCS1001 10 1/8 19 19 36 46 36
CTSCS1002 1/4
CTSCS1003 3/8
CTSCS1004 1/2 21
CTSCS1202 12 1/4 19
CTSCS1203 3/8
CTSCS1204 1/2 21

Tube(Inch)   -  Thread(NPT)
Model D R F P L H H1
CTSCS041032 5/32 10-32UNF 8 10 23 30 23
CTSCS0401N 1/8 10 31
CTSCS0402N 1/4 14
CTSCS071032 1/4 10-32UNF 8 12 23.5 30 23.5
CTSCS0701N 1/8 12 14 26.5 34 26.5
CTSCS0702N 1/4 14
CTSCS0703N 3/8 17 30 38 30
CTSCS0704N 1/2 21
CTSCS0801N 5/16 1/8 14 31 38 31
CTSCS0802N 1/4
CTSCS0803N 3/8 17
CTSCS0804N 1/2 21
CTSCS0901N 3/8 1/8 19 19 36 46 36
CTSCS0902N 1/4
CTSCS0903N 3/8 21
CTSCS0904N 1/2
CTSCS1302N 1/2 1/4 19
CTSCS1303N 3/8
CTSCS1304N 1/2 21

Tube(Metric)   -  Thread(G)
Model D R F P L H H1
CTSCS04M5 4 M5x0.8 8 10 23 30 23
CTSCS0401G 1/8 10 31
CTSCS0402G 1/4 14
CTSCS06M5 6 M5x0.8 8 12 23.5 30 23.5
CTSCS0601G 1/8 12 14 26.5 34 26.5
CTSCS0602G 1/4 14
CTSCS0603G 3/8 17 30 38 30
CTSCS0604G 1/2 21
CTSCS0801G 8 1/8 14 31 38 31
CTSCS0802G 1/4
CTSCS0803G 3/8 17
CTSCS0804G 1/2 21
CTSCS1001G 10 1/8 19 19 36 46 36
CTSCS1002G 1/4
CTSCS1003G 3/8
CTSCS1004G 1/2 21
CTSCS1202G 12 1/4 19
CTSCS1203G 3/8
CTSCS1204G 1/2 21
